OLA Micronano BIO Resin
Online 3D-printservice
Krijg direct online offertes voor onderdelen in meer dan 80 metalen en kunststof materialen. Gratis verzending op alle bestellingen in de VS. Gecertificeerd volgens ISO 9001:2015, ISO 13485 en AS9100D.Start een nieuwe 3D-printofferte
Bestandstype: STL, STP, STEP

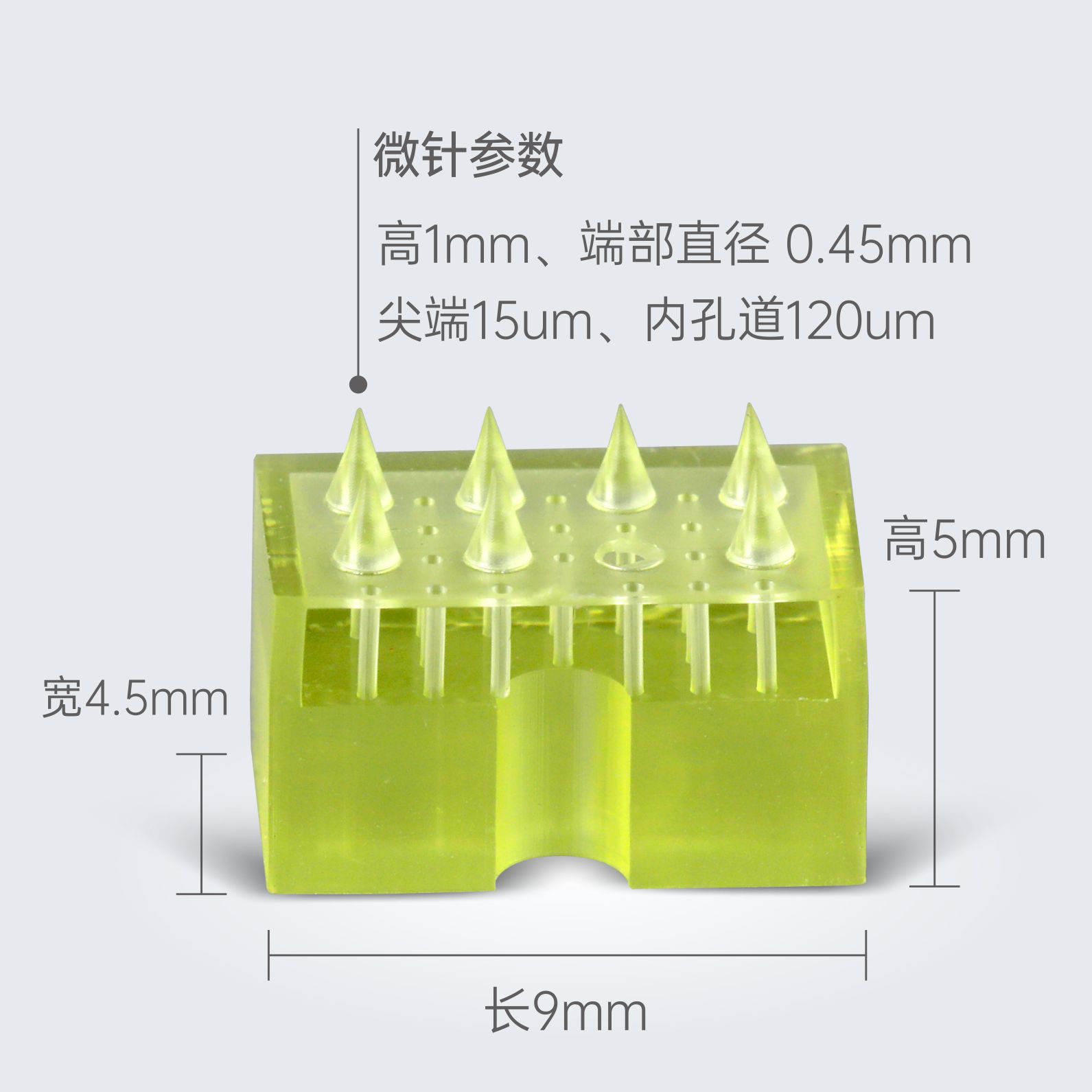

Privacy: Al uw bestanden zijn bij ons veilig. Lees ons privacybeleid.Biocompatible with processing precision up to 20μm, suitable for endoscopes, microneedles, and other precision medical devices.
ThermalProperties
HeatDeflectionTemperature:100℃
MechanicalProperties
TensileStrength:40MPa ElongationatBreak:5% FlexuralModulus:1500MPa FlexuralStrength:50MPa ShoreHardness:80D
ProcessingProperties
Viscosity:200cps
Max. Part Size:
84mm × 63mm × 70mm
Tolerance and Precision：
±20μm or ±0.02%
Advantages
① Biocompatible material, suitable for medical applications
② High dimensional accuracy and thermal resistance
③ Capable of printing micro-scale features (≥50μm)
① Biocompatible material, suitable for medical applications
② High dimensional accuracy and thermal resistance
③ Capable of printing micro-scale features (≥50μm)

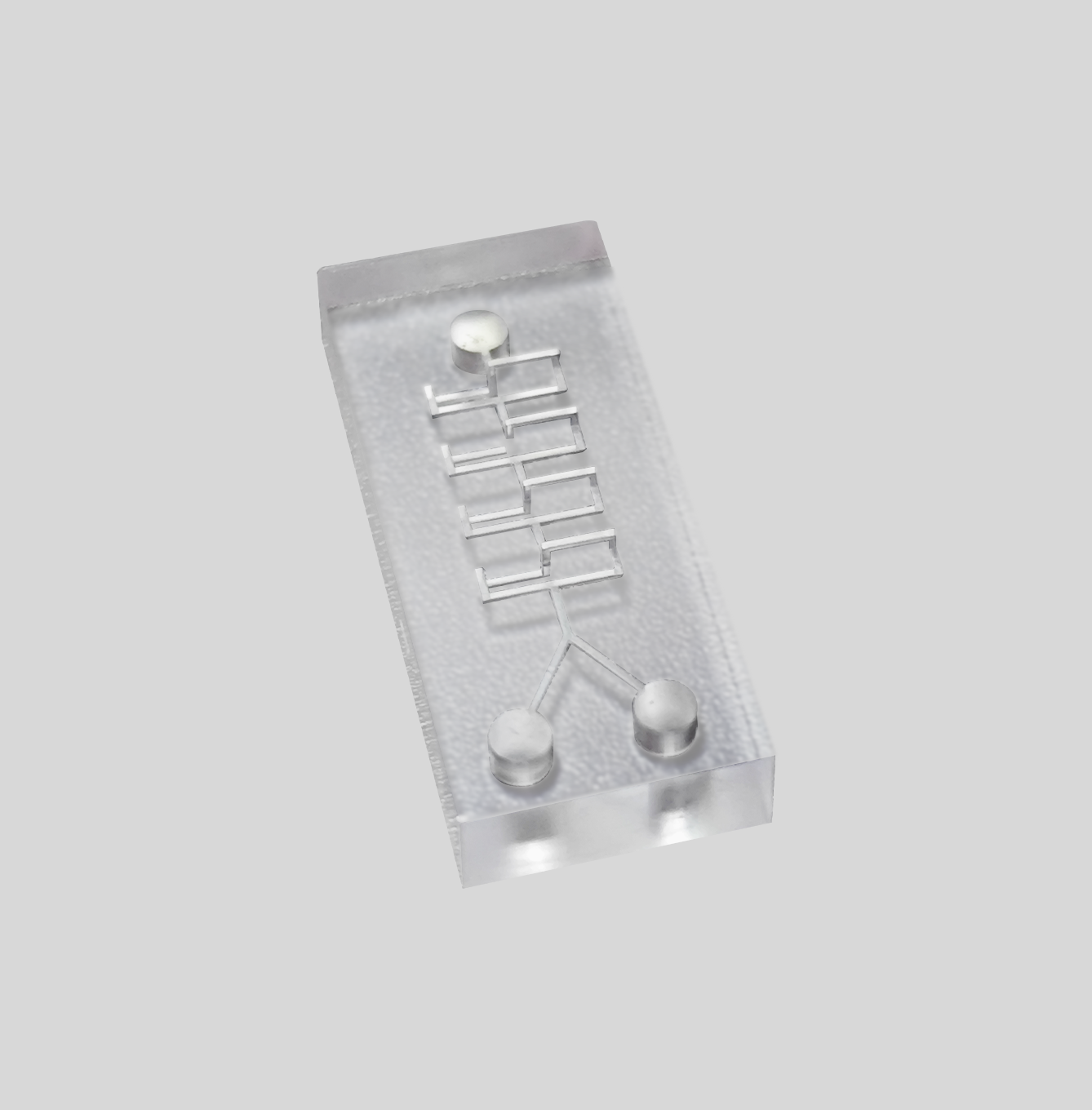

OLA micro/nano translucent resin enables ultra-high-resolution 3D printing with feature sizes as small as 50μm and machining precision down to ±20μm. Suitable for ultra-thin endoscopic tips, microfluidic chips, and other compact medical structures.
ThermalProperties
HeatDeflectionTemperature(@0.45MPa):80℃
ElectricalProperties
DielectricConstant(ε/5GHz):3 DielectricLoss(tanδ/5GHz):3.53e-2
MechanicalProperties
TensileStrength:40MPa ElongationatBreak:3% FlexuralModulus:1500MPa FlexuralStrength:50MPa
ProcessingProperties
Viscosity:200cps
Max. Part Size:
84mm × 63mm × 70mm
Tolerance and Precision：
±20μm or ±0.02%
Advantages
① Excellent balance of mechanical strength and heat resistance
② Biocompatible for use in medical-grade components
③ High precision for micro-scale features (≥50μm)
Disadvantages
① Limited toughness, may not be suitable for high-impact parts
① Excellent balance of mechanical strength and heat resistance
② Biocompatible for use in medical-grade components
③ High precision for micro-scale features (≥50μm)
Disadvantages
① Limited toughness, may not be suitable for high-impact parts

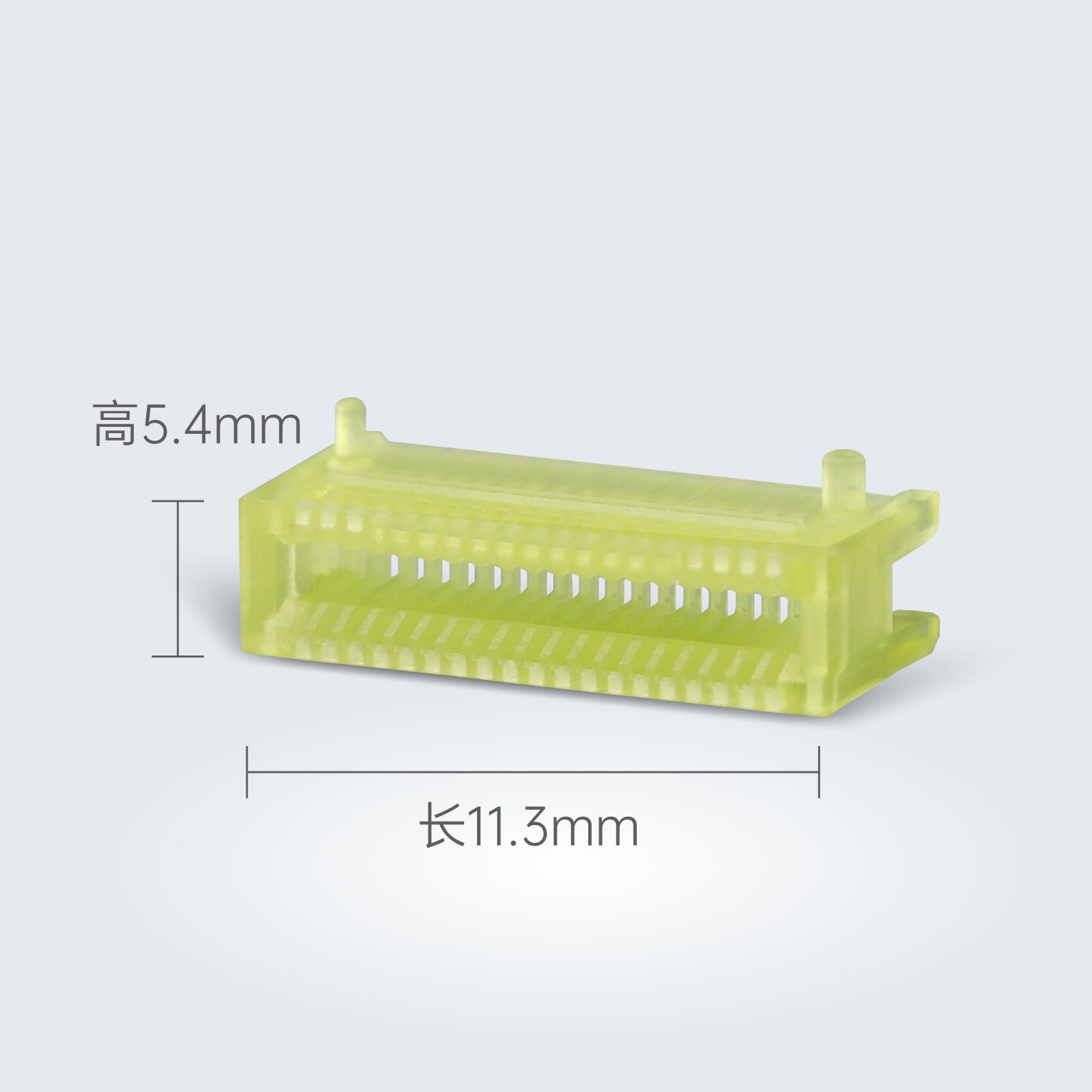

High-temperature resistant and ultra-precision DLP resin. Capable of printing microstructures as small as 50μm with machining tolerance up to ±25μm.
ThermalProperties
HeatDeflectionTemperature:210℃
MechanicalProperties
TensileStrength:51MPa ElongationatBreak:2% FlexuralModulus:4300MPa FlexuralStrength:110MPa ShoreHardness:92D
ProcessingProperties
Viscosity:2000cps
Max. Part Size:
84mm × 63mm × 70mm
Tolerance and Precision：
±25μm or ±0.025%
Advantages
① High heat resistance up to 210°C
② Ultra-precision DLP printing, minimum feature size 50μm
③ Ideal for fine-detail components in harsh environments
① High heat resistance up to 210°C
② Ultra-precision DLP printing, minimum feature size 50μm
③ Ideal for fine-detail components in harsh environments
Highly elastic micro/nano DLP resin with excellent flexibility and fine detail resolution. Supports ultra-precision printing with a minimum feature size of 100μm and machining tolerance up to ±30μm.
ThermalProperties
HeatDeflectionTemperature:—
MechanicalProperties
TensileStrength:7MPa ElongationatBreak:200% FlexuralStrength:2MPa ShoreHardness:60–70A
ProcessingProperties
Viscosity:600cps
Max. Part Size:
84mm × 63mm × 70mm
Tolerance and Precision：
±30μm or ±0.03%
Advantages
① High elasticity for flexible applications
② Ultra-precision printing with ±30μm tolerance
① High elasticity for flexible applications
② Ultra-precision printing with ±30μm tolerance
Combines high strength and excellent toughness with ultra-precision DLP printing. Capable of printing fine structures down to 50μm with machining tolerances up to ±30μm. Offers superior surface quality and dimensional accuracy, making it ideal for precision engineering.
ThermalProperties
HeatDeflectionTemperature:80℃
MechanicalProperties
TensileStrength:45MPa ElongationatBreak:15% FlexuralModulus:1500MPa FlexuralStrength:54MPa ShoreHardness:75D
ProcessingProperties
Viscosity:800cps
Max. Part Size:
84mm × 63mm × 70mm
Tolerance and Precision：
±30μm or ±0.03%
Advantages
① High strength and toughness balance
② Ultra-precise printing with ±30μm tolerance and 50μm minimum feature size
③ Excellent surface finish and dimensional control
① High strength and toughness balance
② Ultra-precise printing with ±30μm tolerance and 50μm minimum feature size
③ Excellent surface finish and dimensional control
